AMC10 2020 A

AMC10 2020 A · Q20

AMC10 2020 A · Q20. It mainly tests Manipulating equations, Triangles (properties).

Quadrilateral ABCD satisfies ∠ABC = ∠ACD = 90°, AC = 20, and CD = 30. Diagonals AC and BD intersect at point E, and AE = 5. What is the area of quadrilateral ABCD?

四边形ABCD满足∠ABC = ∠ACD = 90°，AC = 20，CD = 30。对角线AC和BD相交于点E，且AE = 5。四边形ABCD的面积是多少？

(A) 330 330

(B) 340 340

(D) 360 360

(E) 370 370

Answer

Correct choice: (D)

正确答案：（D）

Solution

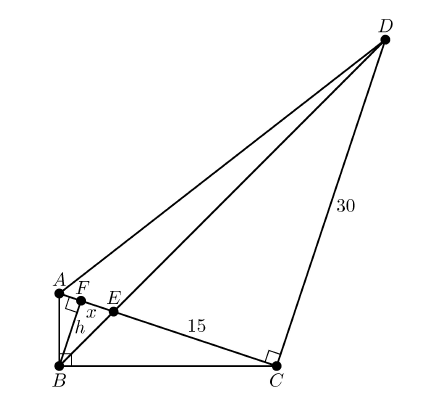

Answer (D): Because the diagonals intersect, quadrilateral $ABCD$ is convex. Let $F$ be the foot of the perpendicular from $B$ to $AC$. Because $\triangle ECD$ is a right triangle, $\angle AEB=\angle DEC$ is acute, so $F$ lies between $A$ and $E$. Let $h=BF$ and $x=EF$. See the figure below. Because $\triangle BFE\sim\triangle DCE$, $$ \frac{h}{x}=\frac{30}{20-5}=2. $$ Because $\triangle ABF\sim\triangle BCF$, $$ \frac{h}{5-x}=\frac{15+x}{h}. $$ Together these imply that $x^2+2x-15=0$. Solving for $x$ yields $x=3$ and $h=6$. The area of $ABCD$ is the area of $\triangle ABC$ plus the area of $\triangle ACD$, and this equals $\frac12\cdot 20\cdot 6+\frac12\cdot 20\cdot 30=360$.

答案（D）：由于两条对角线相交，四边形 $ABCD$ 是凸四边形。设 $F$ 为从 $B$ 向 $AC$ 作垂线的垂足。因为 $\triangle ECD$ 是直角三角形，$\angle AEB=\angle DEC$ 为锐角，所以 $F$ 在线段 $A$ 与 $E$ 之间。令 $h=BF$，$x=EF$。见下图。因为 $\triangle BFE\sim\triangle DCE$， $$ \frac{h}{x}=\frac{30}{20-5}=2. $$ 又因为 $\triangle ABF\sim\triangle BCF$， $$ \frac{h}{5-x}=\frac{15+x}{h}. $$ 合并可得 $x^2+2x-15=0$。解得 $x=3$ 且 $h=6$。$ABCD$ 的面积等于 $\triangle ABC$ 的面积加上 $\triangle ACD$ 的面积，即 $$ \frac12\cdot 20\cdot 6+\frac12\cdot 20\cdot 30=360. $$
